This product is a 10/100Mbps fast Ethernet controller with PCI bus interface, supports PCI 2.1 standard, supports CardBus status registers, supports two-channel bus master, supports scatter/gather DMA function, supports pre-fetch interrupt support, supports Wake-Up on Magic Packet TM detection and network link down event, supports chained transmission data packets, supports early transmit and early receive, supports optional early receive buffer mode, supports automatic rejection of small packets, supports automatic retransmission of collision frames, supports automatic padding of short frames, supports 4.5K bytes of receive buffer and 1.5K bytes of transmit buffer, supports optional 32-bit wide external receive buffer, supports big/little endian byte order, supports 64K bytes of expansion boot flash RAM

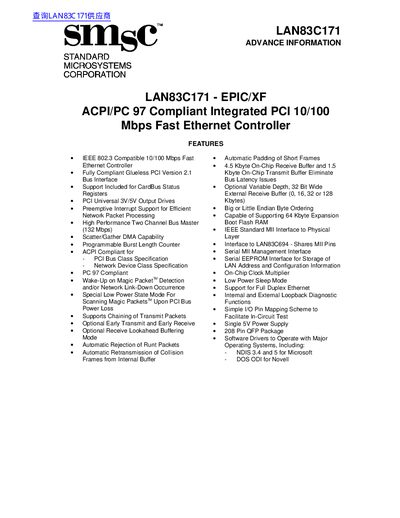

The document describes the LAN83C171 EPIC/XF, a high-performance and low CPU utilization Ethernet network controller designed to interface directly to the PCI Local Bus and the IEEE 802.3 standard Media Independent Interface (MII). It supports both 10/100 Mbps Ethernet rates and includes features such as ACPI compliance, Wake-Up on Magic Packet detection, and a two-channel bus master for efficient data transfer.
| Ethernet Speeds | 10/100 Mbps |
|---|---|
| Bus Interface | PCI Version 2.1 |
| Interrupt Support | Preemptive Interrupt Support |
| Bus Master Rate | 132 Mbps |
| Receive Buffer | 4.5 Kbyte On-Chip |
| Transmit Buffer | 1.5 Kbyte On-Chip |
| Power Supply | Single 5V |
| Package Type | 208 Pin QFP |
The device features a high performance two channel bus master capable of transferring data at 132 Mbps.
Yes, it supports Wake-Up on Magic Packet detection and/or Network Link-Down occurrence.
Yes, it is fully ACPI compliant for both PCI Bus Class Specification and Network Device Class Specification.
