SMSC USB2512i is a low power, OEM configurable, STT (Single transaction translator) hub controller IC with 2 downstream ports for embedded USB solutions.

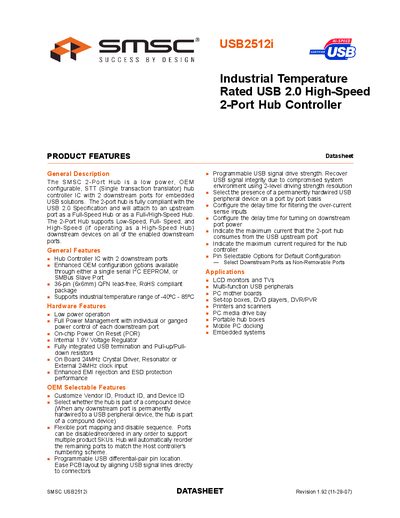

The document describes the SMSC USB2512i, an Industrial Temperature Rated USB 2.0 High-Speed 2-Port Hub Controller. It is designed as a low power, OEM configurable Single transaction translator (STT) hub controller IC with two downstream ports for embedded USB solutions.
Key features include full compliance with the USB 2.0 Specification, support for Low-Speed, Full-Speed, and High-Speed devices, and an industrial temperature range of -40°C to 85°C. The device offers enhanced OEM configuration options via a serial EEPROM or SMBus Slave Port and includes on-chip power management features such as Power On Reset (POR) and an internal 1.8V Voltage Regulator.
| Product Type | Industrial Temperature Rated USB 2.0 High-Speed 2-Port Hub Controller |
|---|---|
| Downstream Ports | 2 downstream ports |
| Package Type | 36-pin (6x6mm) QFN lead-free, RoHS compliant package |
| Operating Temperature Range | -40°C - 85°C |
| Clock Frequency | 24MHz |
The device supports an industrial temperature range of -40°C to 85°C.
The SMSC USB2512i is a Hub Controller IC with 2 downstream ports.
