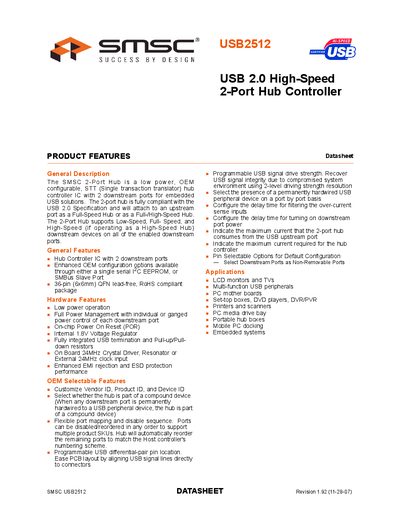

SMSC USB2512 Datasheet

SMSC USB2512 is a USB 2.0 high-low speed 2 port hub controller IC with 2 downstream ports, suitable for embedded USB solutions.

Brand: SMSC
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 37
File format: PDF
File size: 847 KB
Published: 06 June, 2012
Updated: 30 September, 2023
Model: USB2512
MD5 checksum: 52E75E41658AEC7FFB80CBCEC0D405B5
PDF: SMSC USB2512 Datasheet PDF

About this manual

The document describes the SMSC USB2512, a 2-Port Hub Controller IC designed for embedded USB solutions. It supports Low-Speed, Full-Speed, and High-Speed downstream devices and is available in a 36-pin QFN lead-free package.

Key features include enhanced OEM configuration options via EEPROM or SMBus Slave Port, full power management with individual port control, an on-chip 1.8V voltage regulator, and programmable USB signal drive strength for improved integrity.

What's inside

Pin Configuration
Block Diagram
Pin Descriptions
Configuration Options
EEPROM Interface
SMBus Slave Interface
Default Configuration Options
DC Parameters
AC Specifications
Package Outline

Specifications

Product Type	2-Port Hub Controller IC
USB Speed Support	Low-Speed, Full-Speed, High-Speed
Package Type	36-pin QFN lead-free
Operating Voltage Regulator	Internal 1.8V
Clock Frequency	24MHz

Frequently asked questions

What is the SMSC USB2512?

It is a low power, OEM configurable hub controller IC with 2 downstream ports for embedded USB solutions.

Is the device RoHS compliant?

Yes, it is available in a lead-free package that is RoHS compliant.

How can the device be configured?

Configuration options are available through either a single serial EEPROM or an SMBus Slave Port.
