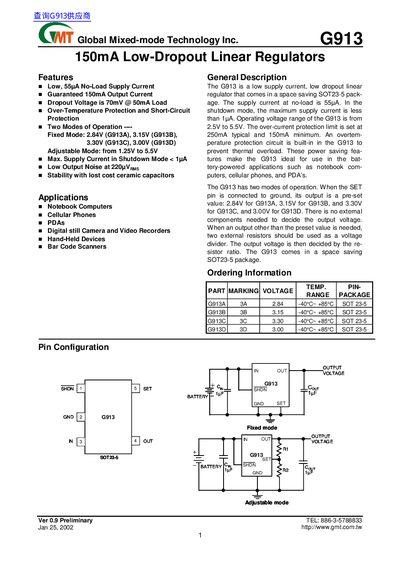

The G913 is a low supply current, low dropout linear regulator that is ideal for battery-powered applications such as notebook computers, cellular phones, and PDA’s.
The document describes the G913, a low dropout linear regulator available in an SOT23-5 package. It offers two operation modes: Fixed Mode with preset voltages (2.84V to 3.30V) and Adjustable Mode ranging from 1.25V to 5.5V. The device is designed for battery-powered applications such as notebook computers, PDAs, and digital cameras due to its low no-load supply current of 55uA.
| Maximum Output Current | 150 mA |
|---|---|
| Dropout Voltage (Typical) | 70 mV @ 50mA |
| No-Load Supply Current | 55uA |
| Package Type | SOT23-5 |
In adjustable mode, the output voltage can be set from 1.25V to 5.5V using two external resistors.
The maximum supply current in shutdown mode is less than 1pA.
