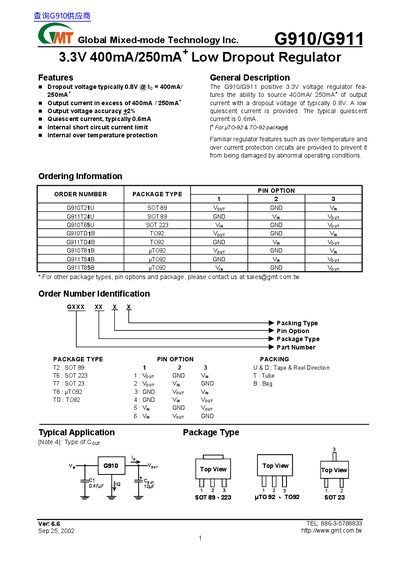

This data sheet provides detailed information on the G910/G911 products, including package type, pin arrangement, supply voltage, output current, output voltage accuracy, static current, short circuit current limit, over temperature protection, etc.
The G910/G911 series are positive 3.3 V low‑dropout voltage regulators offering up to 400 mA (G910) or 250 mA+ (G911) of output current. They feature a typical dropout voltage of 0.8 V, output voltage accuracy of ±2 %, and a low quiescent current of about 0.6 mA. Internal short‑circuit current limiting and over‑temperature protection help prevent damage under abnormal conditions.
The datasheet provides absolute maximum ratings, operating conditions, electrical characteristics, typical performance curves, and detailed package dimensions for SOT‑89, SOT‑223, µTO‑92, TO‑92 and SOT‑23 variants. Ordering information and pin configurations are also listed for each package option.
| Dropout voltage (typical) | 0.8 V @ 400 mA/250 mA+ |
|---|---|
| Maximum output current | 400 mA (G910) / 250 mA+ (G911) |
| Output voltage accuracy | ±2 % |
| Quiescent current (typical) | 0.6 mA |
| Short‑circuit current limit | 0.77 A |
| Over‑temperature protection | 125 °C |
| Input voltage range | 4 V – 7 V |
The typical dropout voltage is 0.8 V at the rated output currents of 400 mA (G910) or 250 mA+ (G911).
The regulator draws a typical quiescent current of 0.6 mA.
The device operates with an input voltage between 4 V and 7 V.
