The document is about the technical data of a product, describing its features and characteristics.

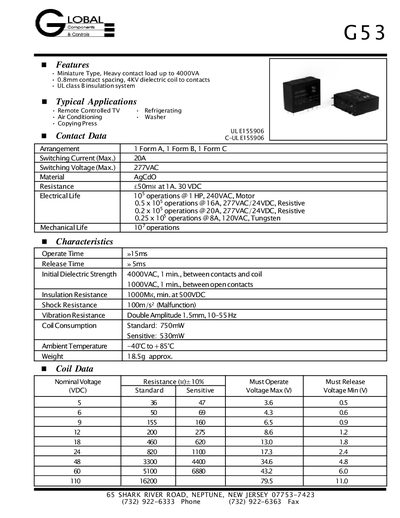

The Global G53 is a miniature type relay designed for heavy contact loads up to 4000 VA, with 0.8 mm contact spacing and a 4 kV dielectric between coil and contacts. It features UL class B insulation, a mechanical life of 10 000 operations, and electrical life ratings for various current and voltage conditions.
Key specifications include a maximum switching current of 20 A at 277 VAC, coil consumption of 750 mW (standard) or 530 mW (sensitive), operating time of 15 ms, release time of 5 ms, insulation resistance of at least 1000 MΩ at 500 VDC, and an ambient temperature range of –40 °C to +85 °C. Dimensions, wiring diagram, and ordering information are also provided.
| Contact load | up to 4000 VA |
|---|---|
| Contact spacing | 0.8 mm |
| Maximum switching current | 20 A |
| Maximum switching voltage | 277 VAC |
| Standard coil consumption | 750 mW |
| Sensitive coil consumption | 530 mW |
| Operating time | 15 ms |
| Release time | 5 ms |
| Insulation resistance | ≥ 1000 MΩ at 500 VDC |
| Ambient temperature range | -40 °C to +85 °C |
| Weight | ≈ 18.5 g |
The maximum switching current is 20 A.
Coil voltages are available at 5, 6, 9, 12, 18, 24, 48, 60, and 110 V DC.
Insulation resistance is at least 1000 MΩ at 500 VDC.
