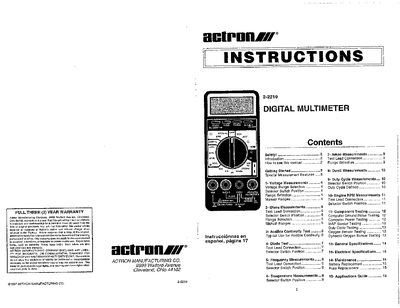

Actron 2-2210 Digital Multimeter User Manual

Brand: Actron
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 9
File format: PDF
File size: 773 KB
Published: 05 June, 2012
Updated: 05 June, 2012
MD5 checksum: FA38376F64A9BE3A5A6E6D94F7CAFE44
PDF: Actron 2-2210 Digital Multimeter User Manual PDF

About this manual

The Actron 2-2210 is an advanced electronic tester combining functions of a standard multimeter with specific automotive testing capabilities. It features a 3-3/4 digit display capable of measuring up to 3260 for standard values and includes a 32-segment graphic bargraph that updates 12 times per second.

What's inside

Safety
Introduction
Getting Started
Voltage Measurements
Ohms Measurements
Audible Continuity Test
Diode Test
Frequency Measurements
Temperature Measurements

Specifications

Display Type	3-3/4 digit display with 32 segment graphic bargraph
Bargraph Update Rate	12 times per second
Maximum Voltage DC	1000V
Maximum Voltage AC	750V
Continuity Threshold	Under 20 ohms

Frequently asked questions

What is the maximum voltage this multimeter can measure?

Do not use this product to measure voltages over 1000 VDC or 750 VAC between any terminal and ground.

How does the audible continuity test work?

The meter produces an audible tone when the resistance being measured is under 20 ohms.

How do I switch between manual and autoranging?

Autoranging is the default mode. Pressing the RANGE button selects manual ranging, and holding it for 2 seconds restores autoranging.
