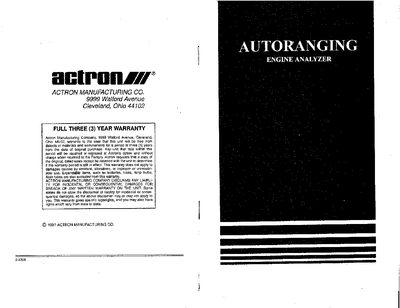

Actron 2-2208 Autoranging Engine Analyzer User Manual

Brand: Actron
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 24
File format: PDF
File size: 1.3 MB
Published: 06 June, 2012
Updated: 06 June, 2012
MD5 checksum: EE8DC7B66CF8994644870A7318F7712B
PDF: Actron 2-2208 Autoranging Engine Analyzer User Manual PDF

About this manual

The Actron 2-2208 is an advanced electronic tester combining functions of a multimeter and automotive analyzer in one compact unit. It features a 3 3/4 digit display, a 42-segment graphic bargraph updating 20 times per second, and auto-ranging capabilities for various measurements including voltage, ohms, frequency, temperature, RPM, and dwell.

What's inside

Safety
Getting Started
Voltage Measurements
Ohms Measurements
Audible Continuity Test
Diode Test
Capacitance Measurement
Frequency Measurements
Temperature Measurements
Amps Measurements

Specifications

Display Type	3 3/4 digit meter display with 42 segment graphic bargraph
Bargraph Update Rate	20 times per second
Warranty Period	Three (3) years
Max DC Voltage	1000 VDC or 750 VAC

Frequently asked questions

How do I switch between manual and auto ranging?

Press the RANGE button to select manual range; press and hold it for 2 seconds to return to auto ranging.

What is the warranty period?

The unit comes with a three-year warranty covering defects in materials and workmanship.

Can I measure AC or DC voltage?

Yes, the meter can measure both AC and DC voltage by using the rotary switch and pressing the DC/AC button.
