B series are general purpose common-mode filters effectively providing RFI control of line-to-ground noise in a small size at low cost. These filters are designed to meet a wide variety of electronic and electrical applications and are available in a broad selection of current ratings and termination styles. The EB models meet the very low leakage current requirements of SEV, VDE portable equipment, and (120 Volt) UL544 nonpatient medical equipment.

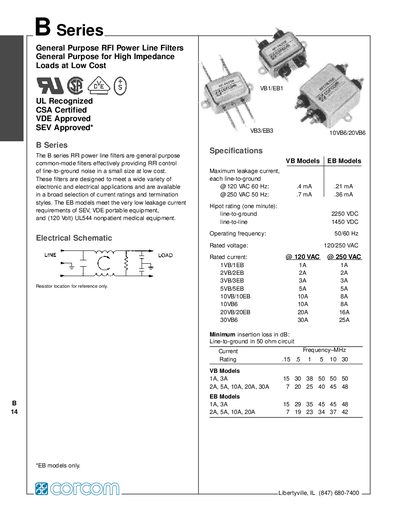

The Corcom B Series consists of general-purpose common-mode RFI power line filters intended to control line-to-ground noise in electronic and electrical applications. These compact, low-cost filters are available in a broad selection of current ratings and termination styles.
Specific EB models within the series meet stringent leakage current requirements for SEV, VDE portable equipment, and UL544 nonpatient medical equipment. The document provides detailed specifications including maximum leakage currents, hipot ratings, operating frequencies, rated voltages, and insertion loss data.
| Maximum leakage current (120 VAC 60 Hz) | 4mA for VB Models, 21 mA for EB Models |
|---|---|
| Maximum leakage current (250 VAC 50 Hz) | 36 mA for VB Models, 36 mA for EB Models |
| Hipot rating (line-to-ground) | 2250 VDC |
| Hipot rating (line-to-line) | 1450 VDC |
| Operating frequency | 50/60 Hz |
| Rated voltage | 120/250 VAC |
The maximum leakage current is 4 mA.
The hipot rating is 2250 VDC for line-to-ground and 1450 VDC for line-to-line.
The filters operate at 50/60 Hz with a rated voltage of 120/250 VAC.
