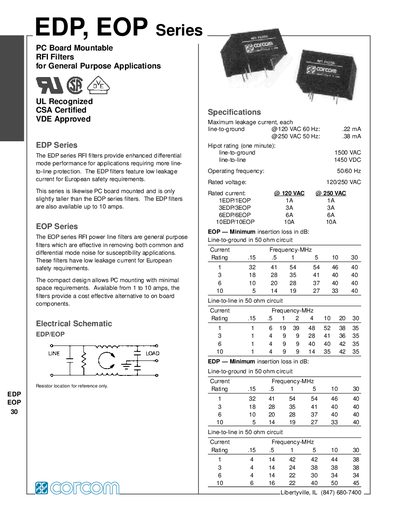

Corcom EDP/EOP Series RFI Filters Datasheet

EDP EOP Series PC Board Mountable RFI Filters for General Purpose Applications have low leakage current for European safety requirements.

Brand: corcom
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 46 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 96B48CC4F05D26AEB23AB6EAC1710E9A
PDF: Corcom EDP/EOP Series RFI Filters Datasheet PDF

About this manual

This document provides technical data for the Corcom EDP and EOP series of RFI (Radio Frequency Interference) power line filters. The EDP series is designed for enhanced differential mode performance with low leakage current suitable for European safety requirements, while the EOP series offers general-purpose filtering for both common and differential mode noise.

What's inside

Specifications
Electrical Schematic
Insertion Loss (EOP)
Insertion Loss (EDP)
Case Style Dimensions
Mounting Holes Pattern
Part Numbers
Certifications

Specifications

Maximum leakage current @ 120 VAC 60 Hz	.22 mA
Operating frequency	50/60 Hz
Rated voltage	120/250 VAC
Mounting type	PC Board Mountable

Frequently asked questions

What is the maximum leakage current for these filters?

The maximum leakage current per line-to-ground at 120 VAC 60 Hz is .22 mA.

Are these filters UL recognized?

Yes, the EDP and EOP series are UL Recognized.
