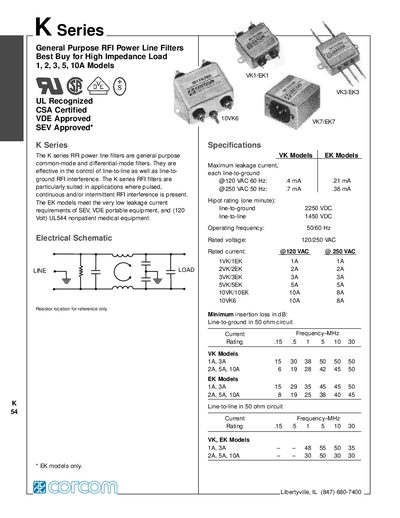

The K series RFI power line filters are general purpose common-mode and differential-mode filters. They are effective in the control of line-to-line as well as line-to- ground RFI interference. The K series RFI filters are particularly suited in applications where pulsed, continuous and/or intermittent RFI interference is present. The EK models meet the very low leakage current requirements of SEV, VDE portable equipment, and (120 Volt) UL544 nonpatient medical equipment.
The document describes the K series RFI power line filters as general-purpose devices effective for controlling both line-to-line and line-to-ground interference. The series includes VK and EK models, where EK models are specifically designed to meet low leakage current requirements for portable equipment and nonpatient medical applications.
Specifications provided include maximum leakage currents, hipot ratings, operating frequencies, and rated voltages and currents ranging from 1A to 40A. The datasheet also lists minimum insertion loss values at various frequencies and provides physical case dimensions and mounting details for different part numbers.
| Operating frequency | 50/60 Hz |
|---|---|
| Rated voltage | 120/250 VAC |
| Hipot rating (line-to-ground) | 2250 VDC |
| Hipot rating (line-to-line) | 1450 VDC |
The EK models meet the very low leakage current requirements of SEV, VDE portable equipment.
The VK model has a rating of 10A, while the EK model has a rating of 8A.
