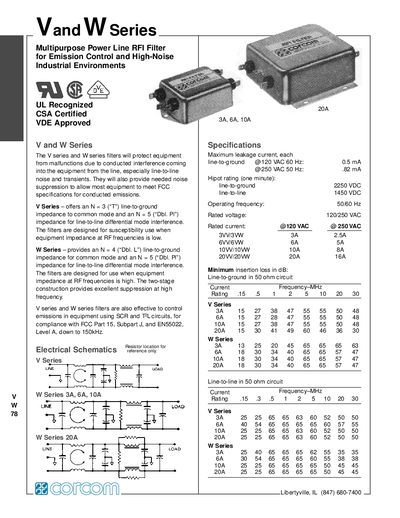

Corcom V/W Series Multipurpose Power Line RFI Filter Datasheet

V and W series power line RFI filters are used to suppress conducted interference and noise in high-noise industrial environments

Brand: corcom
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 81 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 8A8C279B49889AB5CD5F86B21DD5B300
PDF: Corcom V/W Series Multipurpose Power Line RFI Filter Datasheet PDF

About this manual

The document describes the V and W series filters as multipurpose Power Line RFI Filters intended for emission control in high-noise industrial environments. The V series is designed for susceptibility use when equipment impedance at RF frequencies is low, while the W series provides excellent suppression at high frequency for use when equipment impedance is high.

What's inside

V Series and W Series Overview
Electrical Schematics Reference
Specifications (Leakage Current)
Minimum Insertion Loss
Case Styles and Dimensions
Pricing Information

Specifications

Maximum leakage current @120 VAC 60 Hz	0.5 mA
Hipot rating (one minute) line-to-ground	2250 VDC
Operating frequency	50/60 Hz
Rated voltage	120/250 VAC

Frequently asked questions

What is the maximum leakage current for these filters at 120 VAC?

The maximum leakage current is 0.5 mA when operating at 120 VAC.

What torque value should be used for the mounting screws?

The specified torque is 18 + 2 in.lb.
