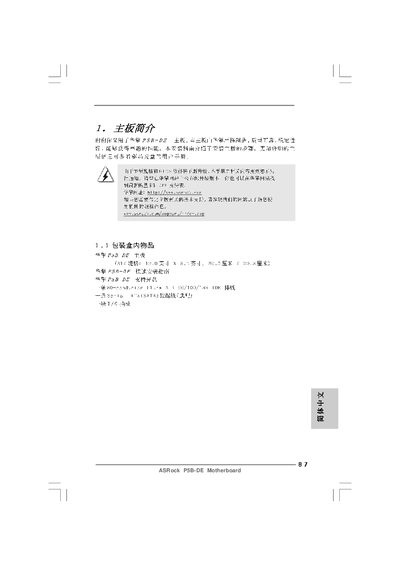

ASRock P5B-DE Motherboard Installation Guide

About this manual

This document serves as an installation guide for the ASRock P5B-DE ATX form factor motherboard. It details the supported processors (Intel Core 2 Extreme/Quad/Duo), memory types (DDR2 up to 8GB), and expansion slots including one PCI Express x16 slot.

The guide provides step-by-step instructions for installing the CPU, heat sink, RAM modules, and various internal components such as hard drives, optical drives, and front panel connectors. It also includes information on BIOS features like Instant Flash and Intelligent Energy Saver. This manual is written in Chinese.

What's inside

• Motherboard Specifications
• CPU Installation
• Memory Installation
• Expansion Slots
• Internal Connectors
• Front Panel Connections
• BIOS Features
• Power Supply Connection

Specifications

Frequently asked questions

What operating systems are supported?

The motherboard supports Microsoft Windows 2000, XP (32-bit and 64-bit), Vista (32-bit and 64-bit), and Win7.

What are the physical dimensions of this motherboard?

The motherboard measures 12.0 inches by 8.0 inches.

What is the maximum supported system memory capacity?

The motherboard supports a maximum of 8GB system memory.

How many USB 2.0 ports are available on this board?

The board provides two USB 2.0 interfaces that can support four additional USB 2.0 ports.
