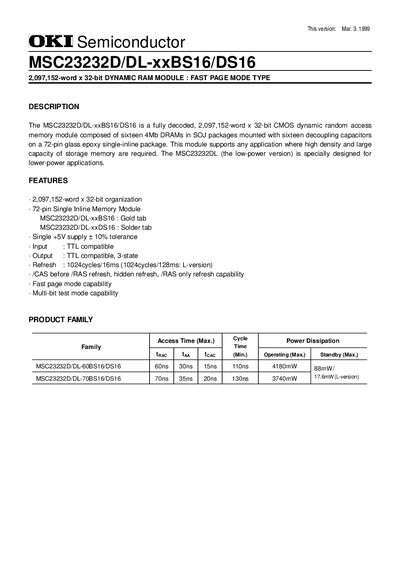

MSC23232D/DL-xxBS16/DS16 is a fully decoded, 2,097,152-word x 32-bit CMOS dynamic random access memory module composed of sixteen 4Mb DRAMs in SOJ packages mounted with sixteen decoupling capacitors on a 72-pin glass epoxy single-inline package.
The MSC23232D/DL-xxBS16/DS16 is a fully decoded, 2,097,152-word x 32-bit CMOS dynamic RAM module composed of sixteen 4Mb DRAMs in SOJ packages. It features a 72-pin glass epoxy single-inline package and supports high-density storage applications with a single +5V supply.
| Organization | 2,097,152-word x 32-bit |
|---|---|
| Package Type | 72-pin Single Inline Memory Module |
| Supply Voltage | +5V + 10% tolerance |
| Refresh Rate (Standard) | 1024 cycles/16ms |
| Refresh Rate (Low Power) | 1024 cycles/128ms |
| Operating Temperature | 0 to +70 °C |
The MSC23232DL is a low-power version specially designed for lower-power applications.
The module has a 2,097,152-word x 32-bit organization.
The maximum operating temperature is +70 °C.
A start-up delay of 200us is required after power-up.
