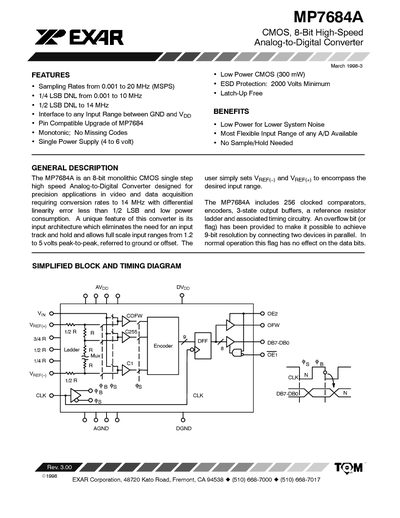

The MP7684A is an 8-bit monolithic CMOS single-step high-speed Analog-to-Digital Converter designed for precision applications in video and data acquisition. It features sampling rates up to 20 MHz, differential non-linearity of less than 1/2 LSB at 14 MHz, and a unique input architecture that eliminates the need for an external sample-and-hold circuit.
| Resolution | 8 Bits |
|---|---|
| Maximum Sampling Rate | 14 MHz |
| Minimum Sampling Rate | 0.001 MHz |
| Operating Voltage Range | 4 to 6 V |
| Power Consumption | 300 mW |
The device supports a maximum sampling rate of 14 MHz for specified accuracy.
No, its unique input architecture eliminates the need for a sample/hold component.
The DNL is less than 1/2 LSB when operating at 14 MHz.
