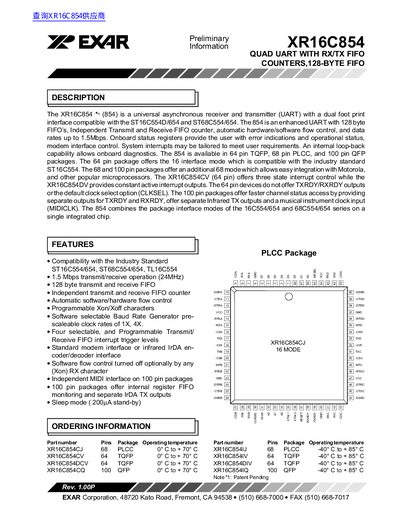

The EXAR XR16C854 is an enhanced universal asynchronous receiver/transmitter (UART) that supports a dual footprint interface compatible with the industry-standard ST16C554/654 and ST68C554/654 series. It features 128-byte transmit and receive FIFOs, independent counters for each buffer, and automatic hardware/software flow control.
The device is available in three package types: 64-pin TQFP, 68-pin PLCC, and 100-pin QFP. The 64-pin version operates exclusively in the 16-bit Intel mode, while the larger packages support both 16-bit and 68-bit Motorola modes. Key capabilities include data rates up to 1.5Mbps (at 24MHz), onboard status registers for error indication, modem interface control, and an internal loop-back capability for diagnostics.
| Data Rate | 1.5 Mbps (at 24MHz) |
|---|---|
| FIFO Size | 128 bytes |
| Packages Available | 64 pin TQFP, 68 pin PLCC, 100 pin QFP |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Operating Temperature (Commercial) | 0°C to +70°C |
The device supports transmit/receive operation at up to 1.5 Mbps when using a 24MHz clock.
Yes, it offers a dual footprint interface that is fully compatible with the industry standard ST16C554/654 and ST68C554/654.
Yes, it features automatic hardware/software flow control.
