The document mainly describes the features and characteristics of the products.

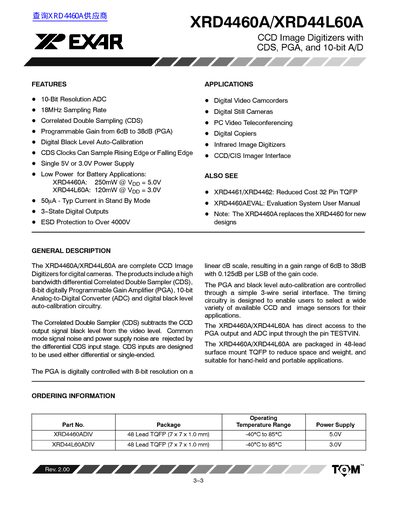

The EXAR XRD4460A and XRD44L60A are complete CCD image digitizers designed for digital cameras, including digital video camcorders, digital still cameras, and infrared image digitizers. These devices integrate a high-bandwidth differential Correlated Double Sampler (CDS), an 8-bit digitally programmable gain amplifier (PGA), a 10-bit analog-to-digital converter (ADC), and digital black level auto-calibration circuitry. The products are available in a 48-lead surface mount TQFP package suitable for hand-held and portable applications.
| ADC Resolution | 10 bits |
|---|---|
| Sampling Rate | 18 MHz |
| PGA Gain Range | 6dB to 38dB |
| PGA Resolution | 8 bits |
| Power Supply (XRD4460A) | 5.0V |
| Power Supply (XRD44L60A) | 3.0V |
| Package Type | 48-lead TQFP |
Yes, the XRD4460A replaces the XRD4460 for new designs.
The typical current in standby mode is 50uA.
