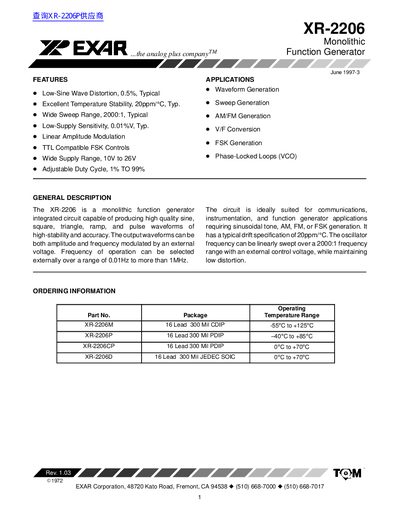

The XR-2206 is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse waveforms of high-stability and accuracy. The output waveforms can be both amplitude and frequency modulated by an external voltage. Frequency of operation can be selected externally over a range of 0.01Hz to more than 1MHz. The circuit is ideally suited for communications, instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation. It has a typical drift specification of 20ppm/°C.
The document describes the XR-2206 as a monolithic integrated circuit capable of producing high-quality sine, square, triangle, ramp, and pulse waveforms. It features low-sine wave distortion (typical 0.5%), excellent temperature stability (20ppm/°C), and supports wide sweep ranges up to 2000:1.
| Sine Wave Distortion (Typical) | 0.5% |
|---|---|
| Temperature Stability | 20ppm/°C |
| Supply Voltage Range | 10V to 26V |
| Operating Frequency Range | 0.01Hz to more than 1MHz |
| Max Operating Frequency | 1 MHz |
| Lowest Practical Frequency | 0.01 Hz |
The XR-2206 has a low-sine wave distortion of 0.5% typically.
The device operates with a wide supply range from 10V to 26V.
