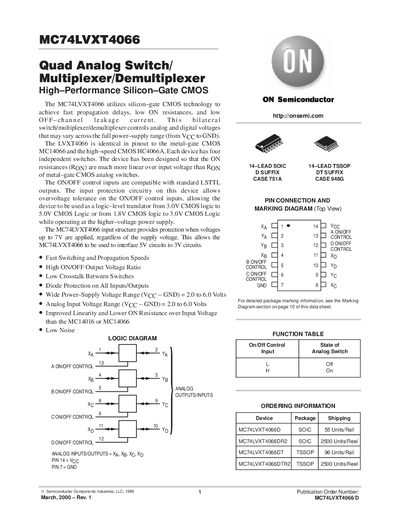

MC74LVXT4066 is a bilateral switch/multiplexer/demultiplexer that utilizes silicon-gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF-channel leakage current. It controls analog and digital voltages that may vary across the full power-supply range (from VCC to GND).
The MC74LVXT4066 is a high-performance silicon-gate CMOS device that functions as a bilateral switch, multiplexer, or demultiplexer. It controls analog and digital voltages across the full power-supply range from VCC to GND. The device features four independent switches with improved linearity and lower ON resistance compared to metal-gate CMOS alternatives.
| Wide Power-Supply Voltage Range | 2.0 to 6.0 Volts |
|---|---|
| Analog Input Voltage Range | 2.0 to 6.0 Volts |
| Maximum Positive DC Supply Voltage | -0.5 to +7.0 V |
| Operating Temperature Range | -55 to +85 °C |
| Maximum ON Resistance (Vcc=2.0V) | 40 Ohms |
| Maximum Propagation Delay (Analog In to Out) | 8.0 ns |
| Maximum On-Channel Bandwidth | 150 MHz |
The device operates with a power-supply voltage range from VCC to GND of 2.0 to 6.0 Volts.
Yes, the ON/OFF control inputs are compatible with standard LSTTL outputs.
The maximum input leakage current for ON/OFF Control Inputs is +1.0 uA at 5.5V.
