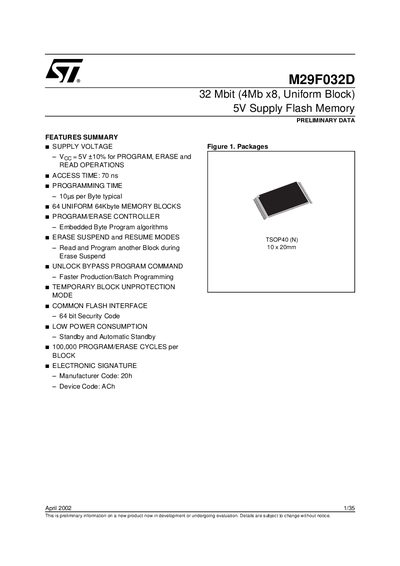

The M29F032D 32 Mbit 5V Supply Flash Memory features a supply voltage of VCC = 5V ±10%, a read/write time of 70 ns, a programming time of 10µs per byte, 64 uniform 64Kbyte memory blocks, support for erase suspend and resume modes, unlock bypass program commands, temporary block unprotection mode, a common flash interface, a 64-bit security code, low power consumption, automatic standby, and 100,000 program/erase cycles per block
The M29F032D is a 32 Mbit (4Mb x8) non-volatile Flash Memory that operates on a single 5V supply. It features 64 uniform 64Kbyte memory blocks that can be erased independently, allowing for data preservation during updates.
The device includes an embedded Program/Erase Controller to simplify programming operations and supports various command interfaces consistent with JEDEC standards. Key features include erase suspend/resume modes, temporary block unprotection, and a Common Flash Interface (CFI) with security codes.
| Supply Voltage | 5V (+10%) |
|---|---|
| Access Time | 70 ns |
| Programming Time | 10us per Byte typical |
| Memory Blocks | 64 uniform 64Kbyte blocks |
| Program/Erase Cycles | 100,000 per block |
| Package Type | TSOP40 (N) |
The device operates with a single 5V supply, allowing +10% for program and erase operations.
The memory is divided into 64 uniform blocks of 64Kbytes each.
The typical programming time is 10 microseconds per byte.
