The EB13C3 series is a 3.3V CMOS clock generator produced by ECLIPTEK CORP., with low input current, high stability and low standby current

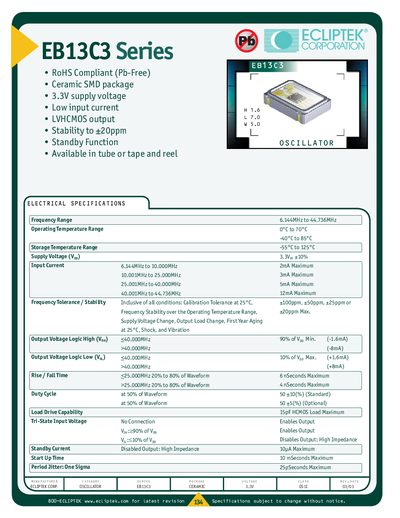

This document provides a technical overview of the ECLIPTEK EB13C3 Series oscillators. Key features include RoHS compliance with Pb-free materials, availability in ceramic SMD packages, and operation at a 3.3V supply voltage. The devices offer stability to +20ppm and are available in tube or tape and reel packaging.
| Supply Voltage | 3.3Vp, +10% |
|---|---|
| Frequency Range | 6.144MHz to 44.736MHz |
| Operating Temperature Range | -40°C to +85°C |
| Frequency Stability | +20ppm Max. |
| Package Type | Ceramic SMD package |
The maximum input current is 3mA.
It indicates a frequency tolerance of +20ppm maximum over -40°C to +85°C.
