This product is a 3.3V voltage controlled crystal oscillator, using HCMOS/TTL output, 14 pin DIP package, stability reaches ±20ppm, with wide frequency and pull range

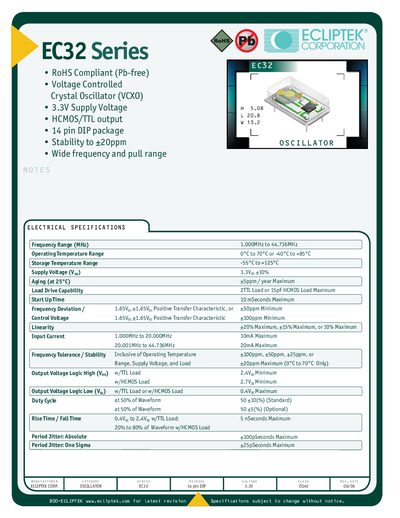

This datasheet describes the EC32 Series voltage‑controlled crystal oscillators (VCXOs) offered by ECLIPTEK. It lists the electrical characteristics such as frequency range, supply voltage, load drive capability, and stability specifications, as well as the mechanical dimensions and packaging options for both 14‑pin and 8‑pin DIP versions.
Additional information includes environmental test results, marking specifications, and part‑numbering guidance. The document is intended for designers and engineers who need detailed parameters for integrating the EC32 VCXO into their circuits.
| Frequency Range | 1.000 MHz to 44.736 MHz |
|---|---|
| Supply Voltage | 3.3 V DC ±10% |
| Load Drive Capability | 10 mA maximum |
| Operating Temperature Range | 0 °C to 70 °C |
The EC32 VCXO operates from a 3.3 V DC supply with a tolerance of ±10 %.
The EC32 series covers frequencies from 1.000 MHz up to 44.736 MHz.
The device can drive up to 10 mA maximum load.
Normal operation is specified from 0 °C to 70 °C.
