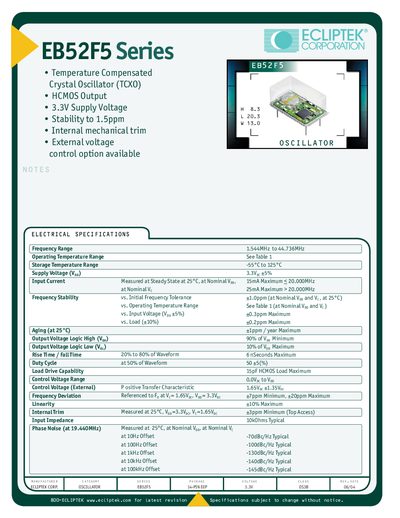

This document is about EB52F5 series temperature compensated crystal oscillator (TCXO) information
The EB52F5 series is a temperature‑compensated crystal oscillator (TCXO) designed for applications requiring high frequency stability across a wide temperature range. It operates from a 3.3 V supply and offers selectable frequency ranges from 1.544 MHz up to 44.736 MHz.
Key features include ±1.5 ppm stability, 90 % logic‑high and 10 % logic‑low output levels, 6 ns maximum rise/fall time, 15 pF HCMOS load capability, and low phase noise (‑145 dBc/Hz at 100 kHz offset). The device meets MIL‑STD mechanical and environmental specifications.
| Frequency Range | 1.544 MHz to 44.736 MHz |
|---|---|
| Supply Voltage | 3.3 V |
| Frequency Stability | ±1.5 ppm |
| Output Voltage Logic High | 90 % of VCC minimum |
| Output Voltage Logic Low | 10 % of VCC maximum |
| Rise/Fall Time | 6 ns maximum |
| Load Drive Capability | 15 pF HCMOS load maximum |
| Phase Noise @ 100 kHz offset | -145 dBc/Hz typical |
| Input Impedance | 10 kΩ typical |
| Operating Temperature Range | -55 °C to 125 °C |
It requires a 3.3 V supply (±5%).
The oscillator provides stability of up to ±1.5 ppm.
The rise and fall times are limited to 6 ns maximum.
It operates from –55 °C up to 125 °C.
