EMK42 series is a MEMS resonator produced by ECLIPTEK CORP., with a working frequency range of 1.000MHz to 125MHz, a supply voltage of 2.5V, and a high stability and 30,000 G shock resistance.

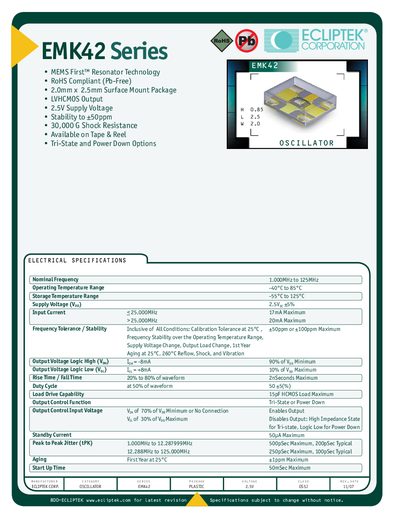

This document is a technical datasheet for the ECLIPTEK EMK42 Series, which utilizes MEMS First™ Resonator Technology. The devices are available in a 2.0mm x 2.5mm surface mount package with LVHCMOS output and operate on a 2.5V supply voltage.
| Supply Voltage | 2.5V +/- 5% |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
| Frequency Stability | +50ppm or +100ppm Maximum |
| Shock Resistance | 30,000 G |
| Package Size | 2.0mm x 2.5mm |
The maximum input current is 20mA.
Yes, output control functions include Tri-State or Power Down.
