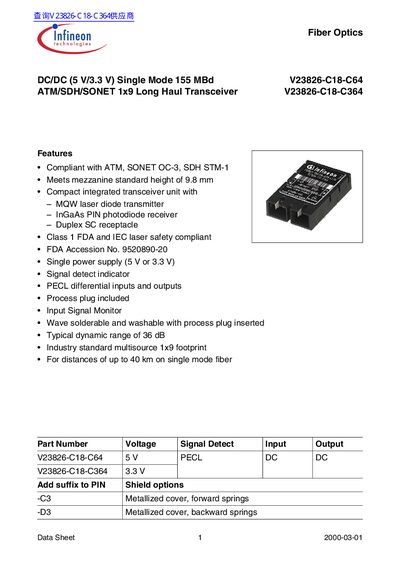

V23826-C18-C64/C364 is a long-distance transceiver that supports ATM, SONET OC-3, SDH STM-1 standards, and meets the 9.8mm standard. It integrates MQW laser diode transmitter, InGaAs PIN photodiode receiver, duplex SC receptacle, has FDA and IEC laser safety standards, single power supply, supports PECL differential input and output, with process plug, input signal monitor, wave solderable and washable with process plug inserted, with a typical dynamic range of 36 dB, and meets the industry standard multi-source 1x9 footprint, suitable for 40 km distance on single mode fiber
The Infineon Technologies V23826 is a compact integrated transceiver unit designed for long-haul single-mode fiber optic communication. It complies with ATM Forum, ANSI T1.646-1995, Bellcore SONET OC-3/LR-1, and ITU-T G.957 STM-1/L.1.1 standards. The device operates at 155.520 Mbit/s using a single power supply of either 5 V or 3.3 V.
| Data Rate | 155.520 Mbit/s |
|---|---|
| Operating Temperature (Ambient) | 0 to 70 °C |
| Power Supply Voltage | 5 V or 3.3 V |
| Output Power (Average) | -5 to -0 dBm |
| Receiver Sensitivity | -36 to -34 dBm |
| Center Wavelength | 1280 to 1335 nm |
It complies with ATM Forum, ANSI T1.646-1995, Bellcore SONET OC-3/LR-1, and ITU-T G.957 STM-1/L.1.1.
The inputs use PECL differential logic.
A high level on this output shows that optical data is applied to the optical input.
