M24C16, M24C08 M24C04, M24C02, M24C01 16Kbit, 8Kbit, 4Kbit, 2Kbit and 1Kbit Serial I²C Bus EEPROM has two wire serial interface, supports 400 kHz protocol, single supply voltage: 4.5V to 5.5V, M24Cxx; 2.5V to 5.5V, M24Cxx-W; 2.2V to 5.5V, M24Cxx-L; 1.8V to 5.5V, M24Cxx-R; write control input; byte and page write (up to 16 bytes); random and sequential read modes; self-timed programming cycle; automatic address incrementing; enhanced ESD/Latch-Up behavior; more than 1 million erase/write cycles; more than 40 years storage data.
File format: PDF
Size: -
MD5 Checksum: F3F1F903E0A052516D449A7510E21791
Publication date: 05 June, 2012
Downloads: -

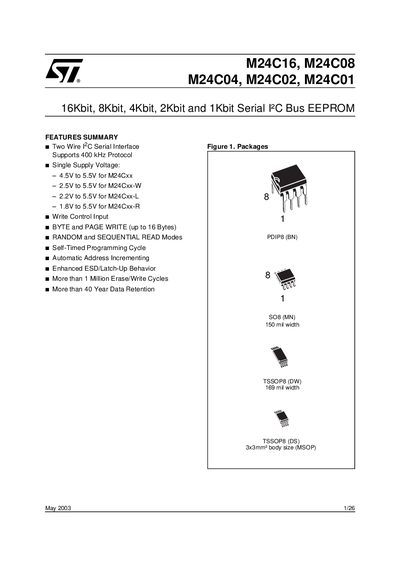

PDF Link: ST M24C16 M24C08 M24C04 M24C02 M24C01 handbook(1) PDF
