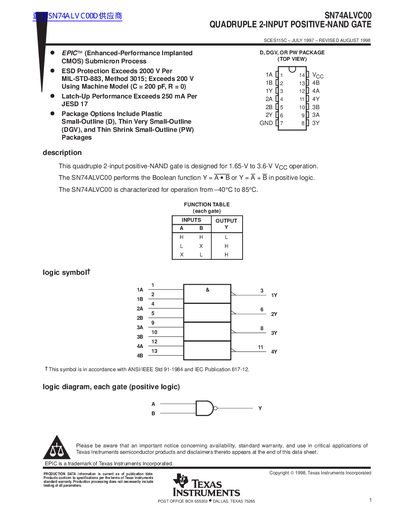

SN74ALVC00 is a four-way 2-input positive NAND gate produced by Texas Instruments
The document describes the SN74ALVC00, a quadruple 2-input positive-NAND gate designed for operation with supply voltages ranging from 1.65 V to 3.6 V. It performs the Boolean function Y = A B (or Y = A + B in positive logic) and is characterized for temperatures between -40°C and 85°C.
The datasheet provides comprehensive technical data including absolute maximum ratings, recommended operating conditions, electrical characteristics over temperature, and switching characteristics with propagation delay times. It also includes timing diagrams illustrating load circuits, voltage waveforms, setup/hold times, and enable/disable timings.
| Supply Voltage Range (VCC) | 1.65 V to 3.6 V |
|---|---|
| Operating Temperature Range | -40°C to 85°C |
The device performs the Boolean function Y = A B or Y = A + B in positive logic.
Available packages include Plastic Small-Outline (D), Thin Very Small-Outline (DGV), and Thin Shrink Small-Outline (PW).
