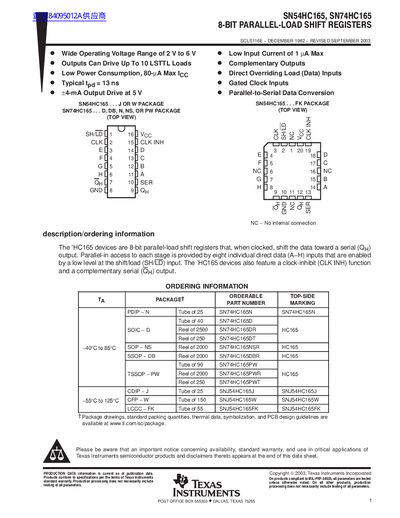

This data sheet provides detailed information on the SN54HC165 and SN74HC165, including pinout, package, functions, specifications, and ordering information.
The document provides a comprehensive overview of the SN54HC165 and SN74HC165 devices, which are 8-bit parallel-load shift registers featuring wide operating voltage ranges from 2 V to 6 V. Key features include low power consumption with a maximum current of 80 µA, the ability to drive up to 10 LSTTL loads, and complementary outputs.
| Supply Voltage Range | 2 V to 6 V |
|---|---|
| Maximum Output Drive Current (5V) | +4 mA |
| Typical Propagation Delay | 13 ns |
| Maximum Input Current (2V) | 80 µA |
| Operating Temperature Range (SN74HC165) | -40°C to 85°C |
These devices are 8-bit parallel-load shift registers with individual direct data inputs A through H.
Available packages include D, DB, N, NS, and PW.
