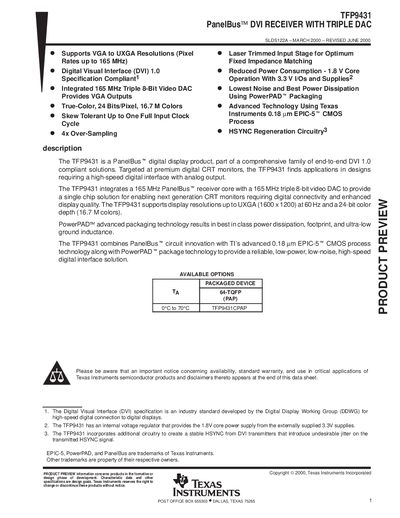

The TFP9431 is a digital display product, part of a comprehensive family of end-to-end DVI 1.0 compliant solutions.
The TFP9431 is a single-chip solution combining a PanelBus™ receiver core with a triple 8-bit video DAC. It supports resolutions up to UXGA (1600 x 1200) at 60 Hz and provides true-color, 24-bit output using PowerPAD™ packaging.
The device operates with a reduced power consumption of 1.8 V core voltage while utilizing 3.3 V I/Os and supplies. It features an integrated internal voltage regulator and skew tolerant circuitry up to one full input clock cycle.
| Maximum Pixel Rate | 165 MHz |
|---|---|
| Supported Resolutions | VGA to UXGA |
| Color Depth | 24 Bits/Pixel (16.7 M Colors) |
| Core Voltage | 1.8 V |
| DAC Resolution | Triple 8-Bit |
The device supports rates up to 165 MHz.
Yes, it supports display resolutions up to UXGA (1600 x 1200) at 60 Hz.
The TFP9431 operates with a reduced power consumption of 1.8 V core.
