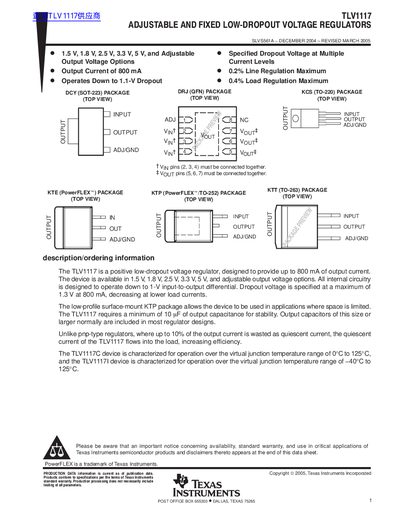

This datasheet is for the TLV1117
The TLV1117 is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. It is available in both fixed output voltage options (1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V) and an adjustable configuration. The device features a low dropout voltage specified at a maximum of 1.3 V at 800 mA.
| Output Current | 800 mA |
|---|---|
| Dropout Voltage (Max) | 1.3 V |
| Operating Junction Temperature Range | -40°C to 125°C (TLV1117I) |
| Minimum Output Capacitance | 10 µF |
The device is available in 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V output voltage options.
The device operates over a virtual junction temperature range up to 125°C.
