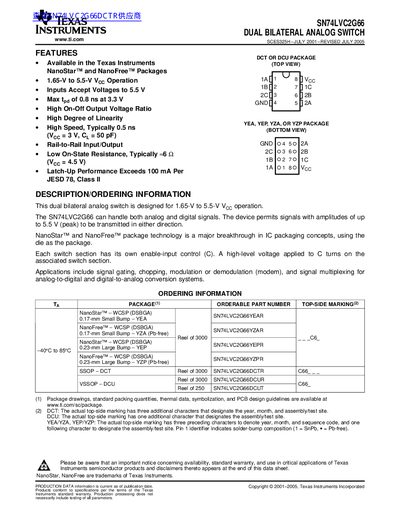

The SN74LVC2G66 is a dual bilateral analog switch from Texas Instruments. It is designed for 1.65-V to 5.5-V VCC operation and can handle both analog and digital signals. The device permits signals with amplitudes of up to 5.5 V (peak) to be transmitted in either direction.
The SN74LVC2G66 is a dual bilateral analog switch designed for operation with supply voltages ranging from 1.65 V to 5.5 V. It can handle both analog and digital signals, permitting signal amplitudes of up to 5.5 V (peak) to be transmitted in either direction between input and output ports.
The device features a high on-off output voltage ratio, high degree of linearity, and low on-state resistance typically around 6 Ω at 3 V. It is available in various packages including NanoStar™, NanoFree™, DCT, and DCU. Applications include signal gating, chopping, modulation or demodulation for modems, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
| Supply Voltage Range | 1.65 V to 5.5 V |
|---|---|
| Typical On-State Resistance (rON) | ~6 Ω at 3 V |
| Operating Temperature Range | -40°C to 85°C |
The device operates with a supply voltage (VCC) ranging from 1.65 V to 5.5 V.
Yes, the SN74LVC2G66 can handle both analog and digital signals.
Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing.
