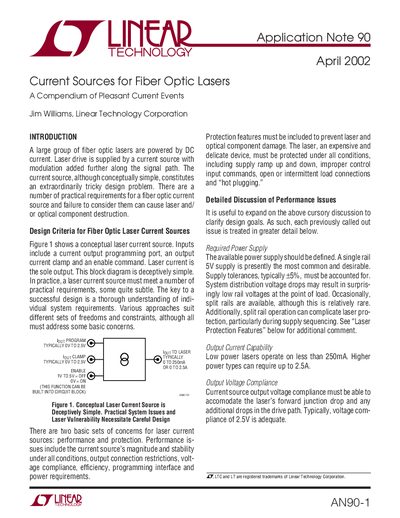

This is an article about current sources for fiber optic lasers.
The document explains that designing a current source for fiber optic lasers is conceptually simple but practically tricky due to the need for performance stability and robust protection against component damage. Key design considerations include managing supply voltage tolerances, ensuring output current capability from low power (less than 250mA) up to high power (up to 2.5A), and maintaining strict noise levels.
| Output Current Capability (Low Power) | less than 250mA |
|---|---|
| Output Current Capability (High Power) | up to 2.5A |
| Typical Voltage Compliance | 2.5V |
| Set Point Accuracy | within 0.5% |
| Line and Load Induced Variations | well within 0.05% |
A voltage compliance of 2.5V is typically adequate to accommodate the laser's forward junction drop and additional drive path drops.
The design should hold line and load induced variations well within 0.05% to ensure stability.
An enable line allows shutting off the current source output, which can also hold the output off during supply ramp up to prevent undesired outputs.
