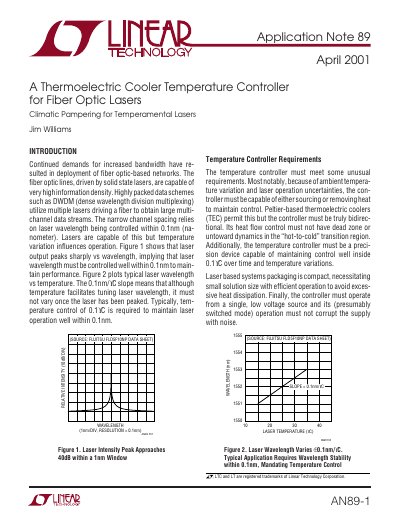

This document describes a thermoelectric cooler temperature controller for fiber optic lasers, which can meet the requirements of precise temperature control to maintain stable performance of the laser.
The document details the requirements for a precision temperature controller used in fiber optic laser systems where maintaining output wavelength within 0.1nm is critical due to temperature sensitivity. It explains that controllers must be bidirectional to handle both heating and cooling without dead zones or dynamic issues during transitions.
A detailed schematic of the LTC1923-based controller is provided, featuring a thermistor bridge amplifier, a pulse width modulator, and an H-bridge power output stage. The text discusses optimizing the thermal control loop by matching gain bandwidth to the system's thermal time constants to prevent oscillation and ensure stable operation.
A temperature control of 0.1 °C is required to maintain laser operation well within 0.1nm.
The thermistor is typically 10k Ω at 25°C.
