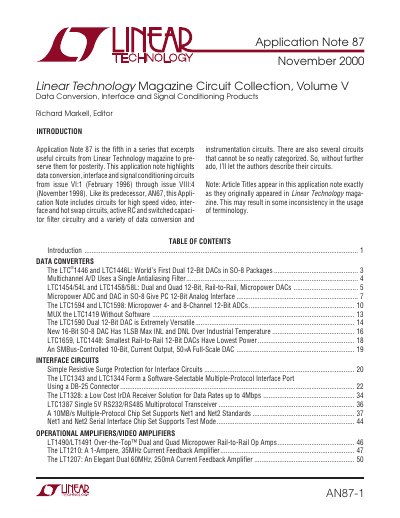

AN87 is the fifth in a series that excerpts useful circuits from Linear Technology magazine to pre- serve them for posterity. This application note highlights data conversion, interface and signal conditioning circuits from issue VI:1 (February 1996) through issue VIII:4 (November 1998).
Application Note 87 is the fifth in a series that excerpts useful circuits from Linear Technology magazine to preserve them for posterity. This document highlights data conversion, interface, and signal conditioning circuits from issues published between February 1996 and November 1998.
The note includes specific circuit designs for high-speed video, interface, hot swap circuits, active RC and switched capacitor filter circuitry, and various data conversion and instrumentation applications. Article titles appear exactly as they originally appeared in Linear Technology magazine.
It covers circuits from issue VI:1 (February 1996) through issue VIII:4 (November 1998).
The LTC1446 provides an output swing of 0V to 4.095V, making each LSB equal to 1mV.
The LTC1446L can operate on a single supply with a wide range of 2.7V to 5.5V.
The maximum serial clock speed is 200kHz, which corresponds to a 10.5kHz sampling rate.
