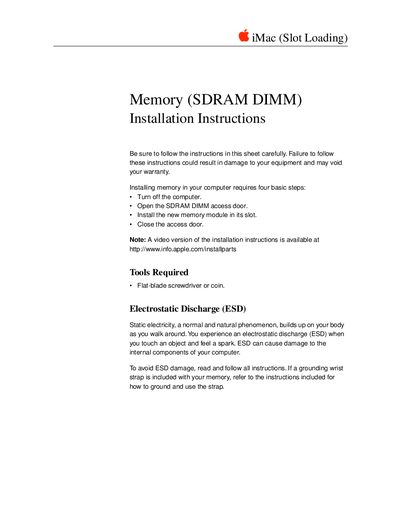

The document introduces the installation method of iMac (Slot Loading) memory (SDRAM DIMM)
This document provides step-by-step instructions for installing standard PC-100 SDRAM DIMMs into an Apple iMac (Slot Loading) computer. It details the necessary tools, safety precautions regarding electrostatic discharge, and the specific physical requirements of the memory modules, such as width, pin count, and maximum height.
| Memory Type | PC-100 Synchronous DRAM (SDRAM) |
|---|---|
| Module Width | 64-bit wide, 168-pin module |
| Buffering Requirement | unbuffered; do not use registered or buffered Synchronous DRAM (SDRAM) |
| Maximum Height | 50 mm |
A flat-blade screwdriver or a coin is required to open the access door.
There are two DIMM slots accessible from the bottom of the computer.
Touch the metal shield inside the recessed latch area before touching components, and ground yourself if a wrist strap is included.
