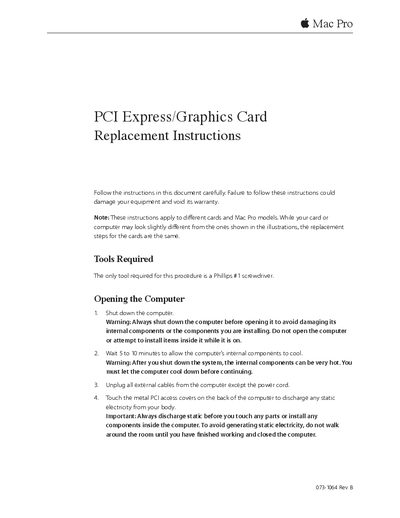

This document provides instructions on how to replace the Mac Pro 073-1064 Rev. B PCI Express/Graphics Card.
This document provides step-by-step instructions for replacing a PCI Express or graphics card in an Apple Mac Pro computer. It details the necessary tools, safety precautions regarding static electricity and heat, and procedures for opening the enclosure to access internal components.
The guide covers removing the installed card by releasing locking clips and unscrewing brackets, as well as installing a replacement card into the expansion slot. It concludes with instructions on securing the bracket and closing the computer case.
The only tool required for this procedure is a Phillips #1 screwdriver.
You must wait 5 to 10 minutes after shutting down the system to allow internal components to cool.
Release the small locking clip at the front of the connector, then hold the card by the top corners and pull it straight up.
