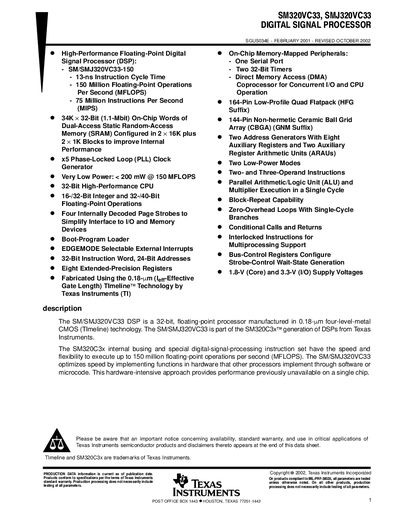

Texas Instruments SM320VC33/SMJ320VC33 Digital Signal Processor Datasheet

About this manual

The SM/SMJ320VC33 is a 32-bit, floating-point processor manufactured in 0.18-um four-level-metal CMOS technology. It belongs to the SM320C3x generation of DSPs from Texas Instruments and optimizes speed by implementing functions in hardware.

What's inside

• Description
• Pinout
• Terminal Assignment
• Boundary Scan Instruction Code

Frequently asked questions

What is the maximum floating-point operation speed of this processor?

The SM/SMJ320VC33 can perform up to 150 million floating-point operations per second (MFLOPS).

What are the supply voltages required for the core and I/O?

The device requires a 1.8-V supply for the core CPU and a 3.3-V supply for I/O.

What is the instruction cycle time of this digital signal processor?

The SM/SMJ320VC33 has a 13-ns instruction cycle time.
