SFH 309 SFH 309 FA NPN-Silizium-Fototransistor is a phototransistor for use in applications from 380 nm to 1180 nm (SFH 309) and 880 nm (SFH 309 FA). It features high linearity and a 3mm LED plastic package.

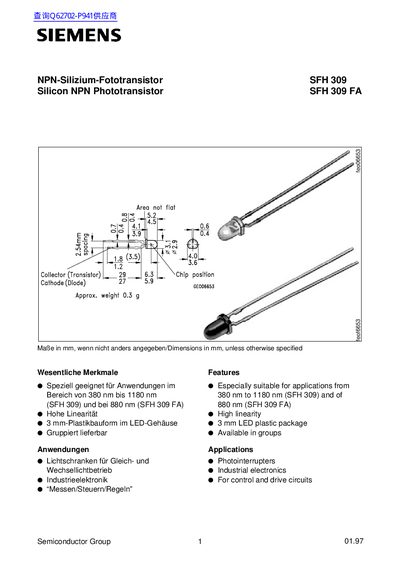

This document is a technical datasheet for the Siemens SFH 309 and SFH 309 FA series of Silicon NPN Phototransistors. It provides detailed information on device features, including suitability for wavelengths from 380 nm to 1180 nm (SFH 309) or 880 nm (SFH 309 FA), high linearity, and a 3 mm plastic package.
| Wavelength of max. sensitivity (SFH 309) | 860 nm |
|---|---|
| Radiant sensitive area | 0.2 mm² |
The device operates and stores within a temperature range of -55 to +100 degrees Celsius.
Dip soldering must be performed with a soldering time of less than 5 seconds.
