The AB206J is a 32.768 kHz SMD reflowable tuning fork crystal suitable for use in real time clocks, measuring instruments, Bluetooth and wireless applications.

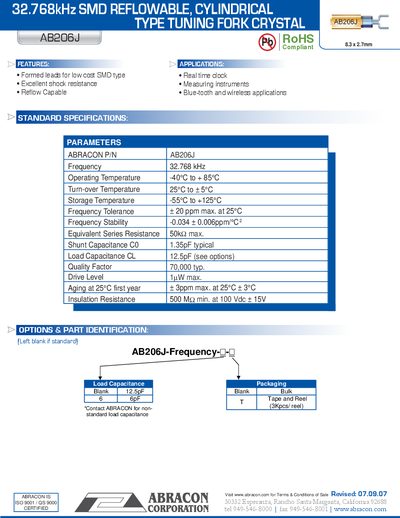

This document provides specifications and application information for the ABRACON AB206J, a 32.768 kHz SMD reflowable cylindrical tuning fork crystal. It is designed with formed leads for low-cost surface mount applications and offers excellent shock resistance.
The datasheet details key electrical parameters including frequency tolerance of ±20 ppm max., operating temperature range from -40°C to +85°C, and equivalent series resistance of 50kΩ max. It also outlines available options for load capacitance and packaging formats such as bulk or tape and reel.
| Frequency | 32.768 kHz |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Frequency Tolerance | ±20 ppm max. at 25°C |
| Equivalent Series Resistance | 50kΩ max. |
| Load Capacitance (Standard) | 12.5pF |
