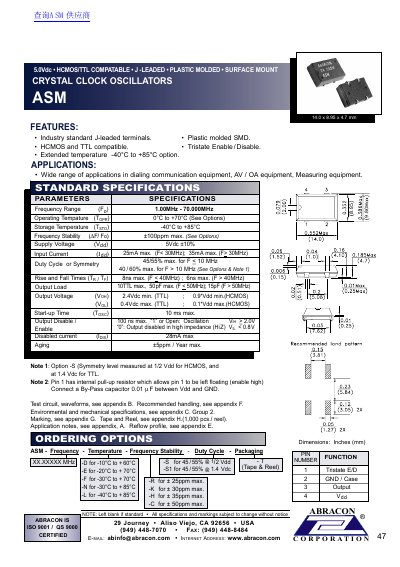

The document describes a 5.0Vdc crystal clock oscillator with features such as HCMOS/TTL compatibility, J-leaded packaging, and surface mount capability.
This document provides technical specifications for the ABRACON ASM series of crystal clock oscillators. The devices feature industry-standard J-leaded terminals and are available in both plastic molded surface mount and J-leaded packages. They are designed for wide-range applications in dialing communication, AV/OA equipment, and measuring equipment.
| Frequency Range | 1.00MHz - 70.000MHz |
|---|---|
| Operating Temperature | 0°C to +70°C |
| Supply Voltage | 5Vdc +10% |
| Frequency Stability | +100ppm max. |
| Input Current | 25mA max. (F< 30MHz) |
| Output Load | 10TTL max., 50pF max. |
| Rise and Fall Times | 8ns max. (F< 40MHz) |
| Aging | +5ppm / Year max. |
They are used in dialing communication equipment, AV / OA equipment, and measuring equipment.
Yes, the device is HCMOS and TTL compatible.
The frequency range is from 1.00MHz to 70.000MHz.
