The ASE3 series is a precision clock generator from ABRACON. It provides multiple packages with a frequency range of 0.5 MHz to 50 MHz. It is low power, compact, low height, high reliability, high precision, and optionally tight stability.

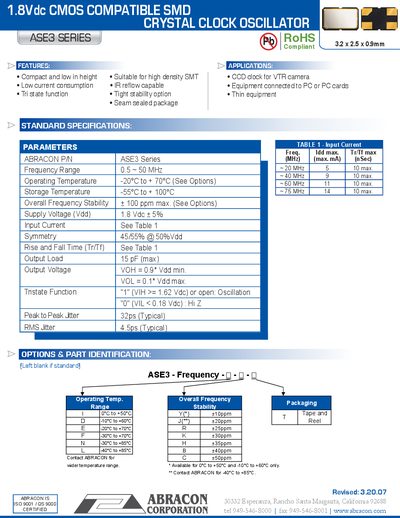

The document describes the ABRACON ASE3 Series, a compact SMD crystal clock oscillator designed for high-density surface mount technology applications. It operates at a supply voltage of 1.8 Vdc and features a tri-state function suitable for equipment connected to PCs or PC cards.
Key specifications include a frequency range from 0.5 MHz to 75 MHz, an operating temperature range of -20°C to +70°C (with options), and low current consumption. The device is RoHS compliant with dimensions of 3.2 x 2.5 x 0.9mm.
| Supply Voltage (Vdd) | 1.8 Vdc +5% |
|---|---|
| Frequency Range | 0.5~75 MHz |
| Operating Temperature | -20°C to +70°C |
| Overall Frequency Stability | +100 ppm max. |
| Output Load | 15 pF (max) |
The supply voltage is 1.8 Vdc with a tolerance of +5%.
The device measures 3.2 x 2.5 x 0.9mm.
Yes, it is suitable for high density SMT due to its compact and low profile height.
