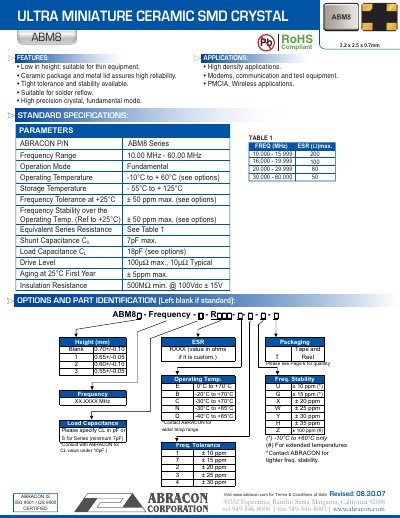

This datasheet provides basic parameters of ABM8 series ultra-miniature ceramic SMD crystals, including frequency, resistance, temperature range, tolerance, etc.
The ABM8 series from ABRACON provides ultra‑miniature ceramic SMD crystals designed for high‑density, thin‑profile applications such as modems, communication equipment, and wireless devices. The crystals feature a low height (3.2 × 2.5 × 0.7 mm), metal‑lid packaging, and RoHS‑compliant lead‑free construction.
Key specifications include a frequency range of 10 MHz to 60 MHz, ESR up to 200 Ω, various temperature‑compensated tolerance options (±10 ppm to ±30 ppm), and operating temperatures from –40 °C to +85 °C. Options for tape‑and‑reel packaging and custom load capacitance are also provided.
| Frequency range | 10.00 MHz – 60.00 MHz |
|---|---|
| Package dimensions | 3.2 × 2.5 × 0.7 mm |
The ABM8 series covers frequencies from 10.00 MHz to 60.00 MHz.
Each crystal measures 3.2 mm × 2.5 mm × 0.7 mm.
Yes, the ABM8 crystal is Pb RoHS compliant.
