ASV1 series is 3.3Vdc HCMOS/TTL compatible ceramic surface mount crystal oscillators, which are used for microprocessors, PC mainboards, graphic cards, and provide clock signals with high output driving capability.
The ASV1 crystal clock oscillator from ABRACON is a leadless chip carrier (LCC) device designed for low‑profile applications. It offers a tristate enable/disable function, HCMOS and TTL compatibility, and operates at 3.3 Vdc.

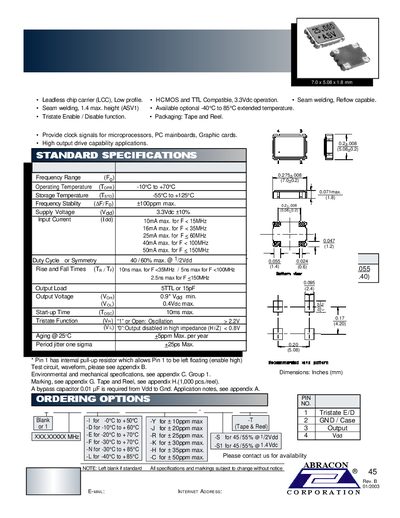

The datasheet lists electrical characteristics such as frequency range, stability, supply voltage, input current, and output voltage, as well as mechanical dimensions, environmental limits, and available ordering options including tape‑and‑reel packaging.
| Frequency Range (Fo) | 0.275‑0.008 |
|---|---|
| Operating Temperature (Topr) | -10°C to +70°C |
| Storage Temperature (Tsro) | -55°C to +125°C |
| Frequency Stability (AF/Fo) | +100 ppm max |
| Supply Voltage (Vdd) | 3.3 Vdc +10% |
| Input Current (Idd) for F < 15 MHz | 10 mA max |
| Output Voltage (Von) minimum | 0.9 × Vdd |
| Start‑up Time (Tos) | 10 ms max |
| Aging at 25°C | +5 ppm per year max |
| Period jitter (1σ) | +25 ps max |
The device operates from a 3.3 Vdc supply with a +10 % tolerance.
The oscillator works from –10 °C up to +70 °C.
It is supplied in tape‑and‑reel packaging.
The input current is limited to 10 mA max for frequencies under 15 MHz.
