Intel 82C288 Bus Controller Datasheet

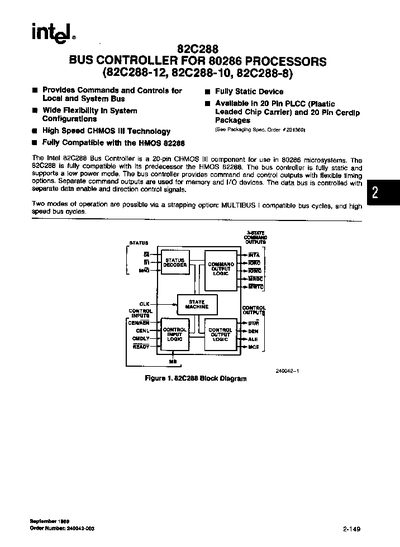

Intel 82C288 Bus Controller Datasheet - cover page
Brand
Intel
Document type
Datasheet
Language
English
Pages
21
File format
PDF
File size
1.2 MB
Published
05 June, 2012
Updated
05 June, 2012
Model
82C288
MD5 checksum
29A6E66ECDF2B4588C7A6288F28AC0A2

About this manual

The Intel 82C288 is a 20-pin CHMOS II bus controller designed for use in 80286 microsystems. It provides commands and controls for fully static devices, offering high-speed operation with flexible timing options. The device supports both MULTIBUS I compatible bus cycles and high-speed bus cycles via strapping options.

What's inside

  • Pin Description
  • Command and Control Outputs
  • Operating Modes
  • Static Operation
