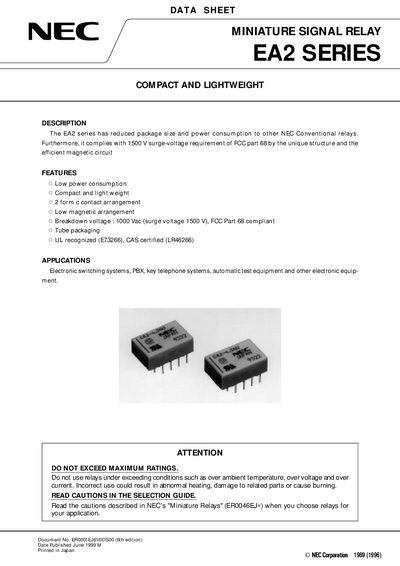

The EA2 series miniature signal relay has a reduced package size and power consumption to other NEC Conventional relays. Furthermore, it complies with 1500 V surge-voltage requirement of FCC part 68 by the unique structure and the efficient magnetic circuit.
The EA2 series miniature signal relays are compact, lightweight devices with reduced power consumption compared to conventional NEC relays. They meet FCC Part 68 surge‑voltage requirements (1500 V) and are UL recognized and CSA certified. The datasheet provides detailed mechanical dimensions, pin configurations, and safety ratings for various coil voltage options.
Key performance data include a breakdown voltage of 1000 Vac (1500 V surge), contact ratings of 1 A switching current and 2 A carrying current, operating power as low as 56 mW (single‑coil latch, 24 V), and an operate time of about 2 ms. Environmental limits are –40 °C to 85 °C and the relay weighs approximately 1.5 g. Application guidance covers coil wiring, soldering temperature, and cleaning recommendations.
| Breakdown voltage | 1000 Vac (surge 1500 V) |
|---|---|
| UL recognition | E73266 |
| Nominal coil voltage options | 3, 4.5, 5, 6, 9, 12, 24 V |
| Contact rating (switching current) | 1 A |
| Carrying current | 2 A |
| Operate time (no diode) | ≈2 ms |
| Release time (no diode) | ≈1 ms |
| Insulation resistance | 1000 MΩ at 500 Vdc |
| Ambient temperature range | -40 °C to 85 °C |
| Weight | ≈1.5 g |
The maximum switching voltage is 220 Vdc (250 Vac).
The EA2 series is offered with nominal coil voltages of 3, 4.5, 5, 6, 9, 12 and 24 V.
Yes, the relay is UL recognized (file number E73266).
Soldering should be performed at 250 °C for up to 10 seconds.
