The PT7600 is a high-performance 10 Amp Integrated Switching Regulator (ISR) designed for easy integration of high-speed low-voltage microprocessors and bus drivers into existing 5V systems. It features high efficiency, wide input voltage range, and differential remote sense. It requires 1200µF of output capacitance.

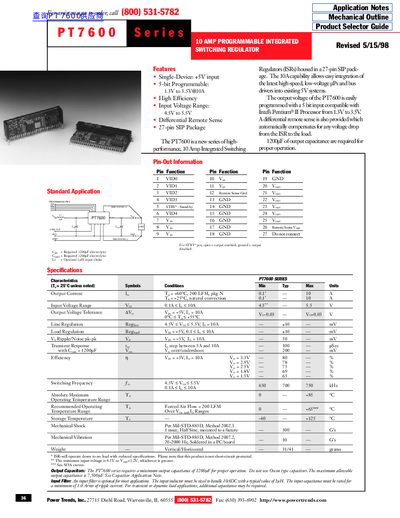

The document describes the PT7600 Series of high-performance, 10 Amp Integrated Switching Regulators housed in a 27-pin SIP package. These regulators are designed for easy integration into existing systems, featuring compatibility with Intel Pentium II processors to program output voltages from 1.3V to 3.5V using a 5-bit input.
| Input Voltage Range | 4.5V to 5.5V |
|---|---|
| Output Voltage Range | 1.3V to 3.5V |
| Operating Temperature Range | -40°C to +85°C (Forced Air) |
| Switching Frequency | 700 kHz to 750 kHz |
A minimum of 1200uF is required for proper operation.
No, this product is not short-circuit protected.
