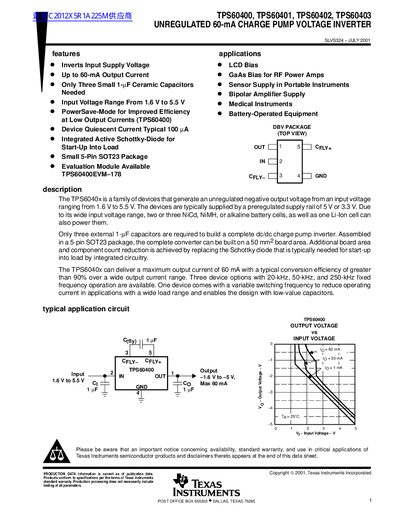

This document introduces the TPS6040x family of products, which are devices that generate an unregulated negative output voltage from an input voltage ranging from 1.6V to 5.5V. The series features a wide input voltage range, only three small 1μF ceramic capacitors required, and a maximum output current of 60mA.
The TPS6040x is a family of devices that generate an unregulated negative output voltage from an input voltage ranging from 1.6 V to 5.5 V. These devices are typically supplied by a preregulated supply rail but can also be powered by NiCd, NiMH, alkaline battery cells, or one Li-ion cell.
| Output Current | 60 mA |
|---|---|
| Input Voltage Range | 1.6 V to 5.5 V |
| Quiescent Current (Typical) | 100 uA |
| Output Resistance | approximately 15 Ohm |
The devices offer fixed frequency operation at 20 kHz, 50 kHz, and 250 kHz, or a variable switching frequency.
Only three external 1-uF ceramic capacitors are needed to build a complete charge pump inverter.
