BD6360GUL is a stepping motor driver for mobile phone cameras. It features a parallel interface and supports auto focus and zoom. It also integrates the power supply and wave-shaping circuit for the photo-interrupter, which is necessary for determining the position of the motor.
The BD6360GUL is an ultra‑small lens driver IC designed for mobile phone camera autofocus or zoom systems that use a stepping motor. It integrates a power supply and a wave‑shaping circuit for the photo‑interrupter to determine motor position.

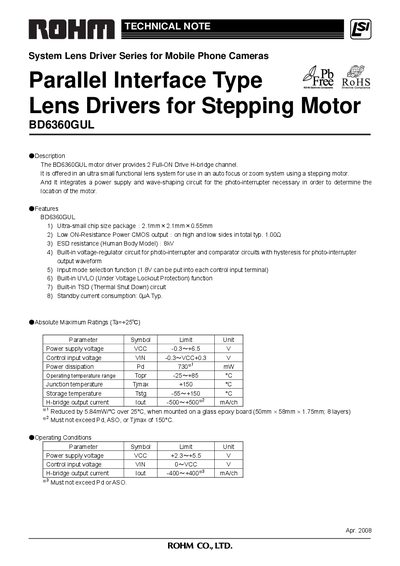

The document lists the device's key features, absolute maximum ratings, operating conditions, electrical characteristics, pin assignments, truth tables, and application circuit diagrams, as well as handling and safety notes for designers and technicians.
| Package size | 2.1 mm × 2.1 mm × 0.55 mm |
|---|---|
| Typical ON‑resistance (H‑bridge) | 1.00 Ω |
| Operating VCC range | +2.3 V to 45.5 V |
| Operating temperature range (Topr) | -25 °C to +85 °C |
| Maximum junction temperature (Tjmax) | +150 °C |
The package measures 2.1 mm × 2.1 mm × 0.55 mm.
Typical ON‑resistance is 1.00 Ω.
VCC can be supplied with a voltage between +2.3 V and 45.5 V.
The maximum junction temperature (Tjmax) is +150 °C.
