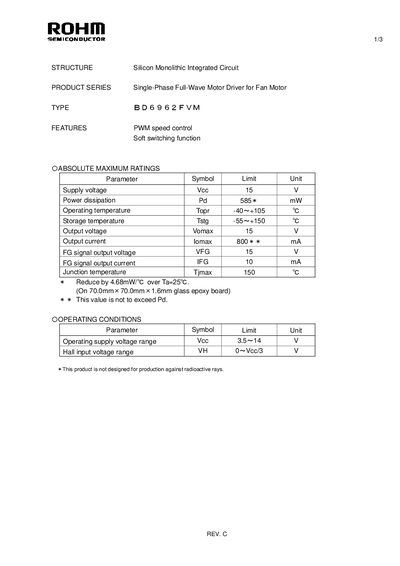

BD6962FVM is a single-phase full-wave fan motor driver with PWM speed control and soft switching function.
The BD6962FVM is a silicon monolithic integrated circuit that functions as a single‑phase full‑wave motor driver for fan motors. It features PWM speed control and a soft‑switching function, and is supplied in an MSOP‑8 package.
The document lists absolute maximum ratings, operating conditions, detailed electrical characteristics, pin assignments, and extensive cautions on use such as reverse‑polarity protection, thermal shutdown behavior, and grounding considerations. These data help designers integrate the IC safely into electronic equipment.
| Supply voltage (Vec) | 15 V |
|---|---|
| Power dissipation (Pd) | 585 mW |
| Operating temperature (Topr) | -40~+105 °C |
| Output current (Iomax) | 800 mA |
| FG signal output voltage (VFG) | 15 V |
| Junction temperature (Timax) | 150 °C |
The maximum supply voltage is 15 V.
The IC operates from –40 °C to +105 °C.
The built‑in thermal shutdown circuit activates at about 175 °C (typ.).
