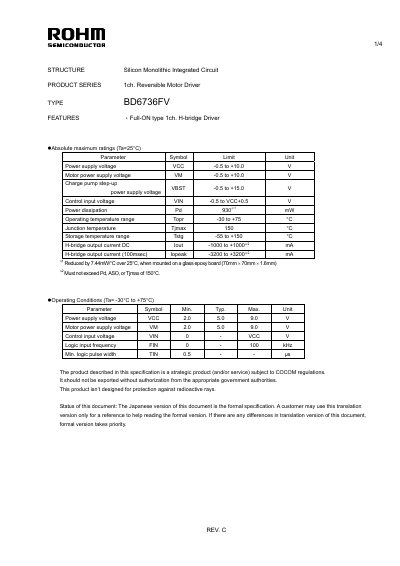

This document describes the features and characteristics of the BD6736FV type 1-channel reversible motor driver, which is part of the 1/4 REV. C STRUCTURE silicon monolithic integrated circuit product series.
The BD6736FV is a full‑ON type single‑channel H‑bridge driver designed for reversible motor control. The document provides absolute maximum ratings, electrical characteristics, package dimensions, pin assignments and a block diagram of the internal architecture.
Operational guidance covers safe use beyond rating limits, thermal design, grounding recommendations and example application circuits. Export and usage restrictions are also noted.
